伺服電機詳細資料可在官方網站下載或來電咨詢索?。?/span>

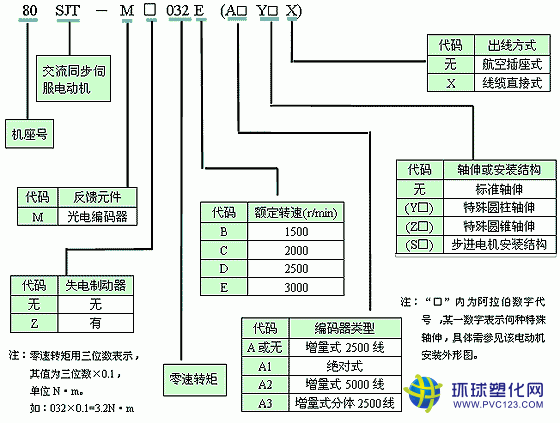

廣西柏菱達數控設備有限公司  廣州數控系統區域經銷 產品型號說明

功能參數

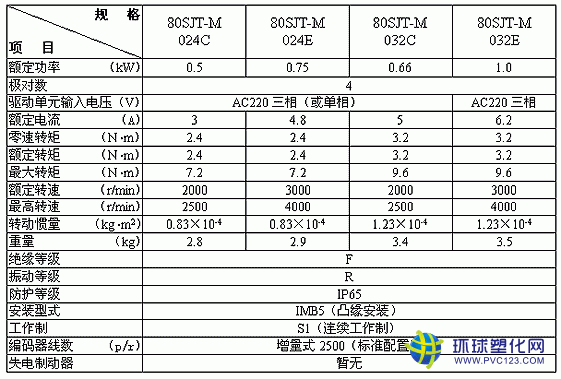

80SJT系列電動機技術參數：

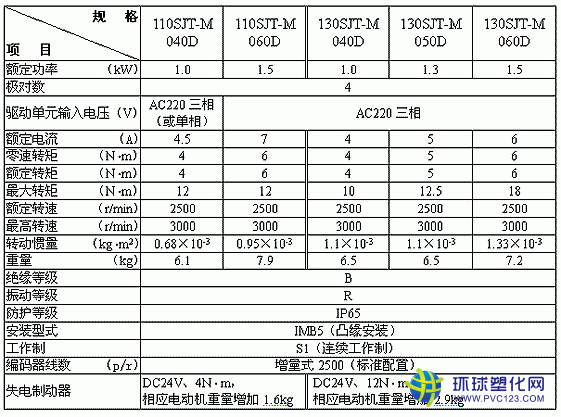

110SJT系列、130SJT系列電動機技術參數

175SJT系列電動機技術參數

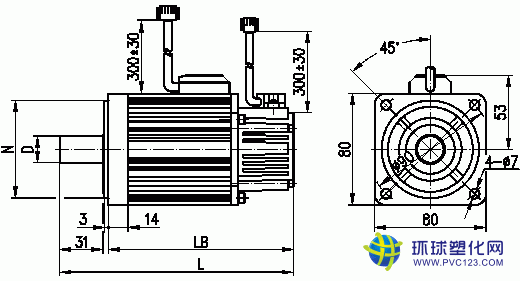

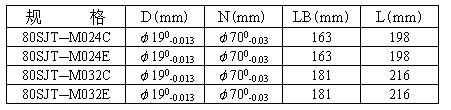

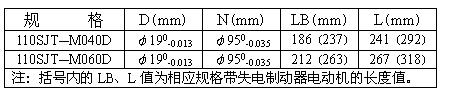

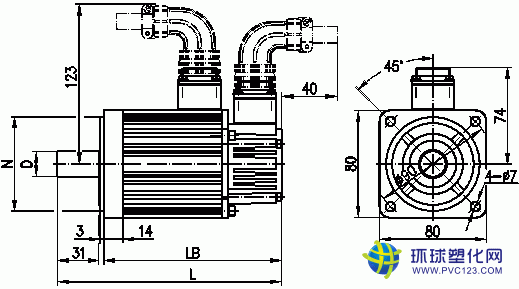

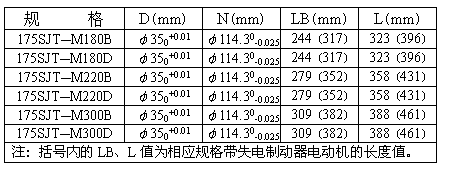

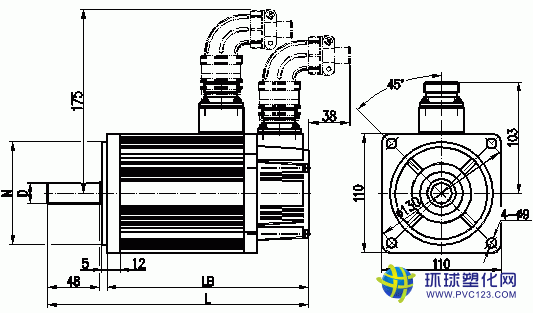

1) 80SJT系列電動機安裝尺寸 航空插座式： 線纜直接式：       2) 110SJT系列電動機安裝尺寸     3) 130SJT系列電動機安裝尺寸       4) 175SJT系列電動機安裝尺寸

廣州數控 伺服電機型號與其匹配的伺服驅動單元：

選型如下：

DA98B05/80SJT-M024C DA98B-08/80SJTM-024E

DA98B-07/80SJTM-032C DA98B10/80SJT-M032E

DA98B-10/ 110SJT-M(Z)040D DA98B15/ 110SJT-M(Z)060D

DA98B-10/130SJT-M(Z)040D DA98B-15/130SJT-M(Z)050D

DA98B-15/130SJT-M(Z)060D DA98B-18/130SJT-M(Z)075D

DA98B-15/130SJT-M(Z)100B DA98B-26/130SJT-M(Z)100D

DA98B-23/130SJT-M(Z)150B DA98B-39/130SJT-M(Z)150D

DA98B-28/175SJT-M(Z)180B DA98B-38/175SJT-M(Z)180D

DA98B-35/175SJT-M(Z)220B DA98B-45/175SJT-M(Z)220D

DA98B-38/175SJT-M(Z)300B DA98B-60/175SJT-M(Z)300D



DA98A05/80SJT-M(Z)024C DA98A08/80SJT-M(Z)024E

DA98A07/80SJT-M(Z)032C DA98A10/80SJT-M(Z)032E

DA98A-10 /110SJT-M(Z)040D DA98A-15 /110SJT-M(Z)060D

DA98A-10/130SJT-M(Z)040D DA98A-15/130SJT-M(Z)050D

DA98A-15/130SJT-M(Z)060D DA98A-18/130SJT-M(Z)075D

DA98A-15/130SJT-M(Z)100B DA98A-26/130SJT-M(Z)100D(AY5)

DA98A-23/130SJT-M(Z)150B DA98A-39/130SJT-M(Z)150D(AY5)

DA98A-28/175SJT-M(Z)180B DA98A-38/175SJT-M(Z)180D

DA98A-35/175SJT-M(Z)220B DA98A-45/175SJT-M(Z)220D

DA98A-38/175SJT-M(Z)300B DA98A-60/175SJT-M(Z)300D
Di20-M05A1-L/80SJT-M024C(Y1) Di20-M08A1-L/80SJT-M024E(Y1)
Di20-M07A1-L/80SJT-M032C(Y1) Di20-M10A1-L/80SJT-M032E(Y1)
Di20-M10B2-L/110SJT-M(Z)040D(AY1) Di20-M10B2-L/130SJT-M(Z)040D(AY5)

Di20-M15B4-L/110SJT-M(Z)060D(AY1)
Di20-M15B2-L/130SJT-M(Z)050D(AY5) Di20-M15B2-L/110SJT-M(Z)060D(AY1)
Di20-M15B2-L/130SJT-M(Z)060D(AY5) Di20-M20B4-L/130SJT-M(Z)075D(AY5)
Di20-M20B4-L/130SJT-M(Z)075D(AY5) Di20-M15B2-L/130SJT-M(Z)100B(AY5)
Di20-M15C6-L/130SJT-M(Z)100B(AY5) Di20-M25B4-L130SJT-M(Z)100D(AY5)
Di20-M25B4-L/130SJT-M(Z)100D(AY5) Di20-M25C6/130SJT-M(Z)100D(AY5)
Di20-M23B4-L/130SJT-M(Z)150B(AY5)Di20-M23C6-L/130SJT-M(Z)150B(AY5)

 Di20-M39C6-L/30SJT-M(Z)150D(AY5) Di20-M28C6/175SJT-M(Z)180D(Y1)

Di20-M35D8-L/175SJT-M(Z)180D(Y1) Di20-M35D8-L/175SJT-M(Z)220B(Y1)

Di20-M45D8-L/175SJT-M(Z)220D(Y1) Di20-M35D8-L/175SJT-M(Z)300B(Y1)

Di20-M60D8-L/175SJT-M(Z)3000D(Y1)
